Electromagnetic Reed Relay

GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic Reed Relay

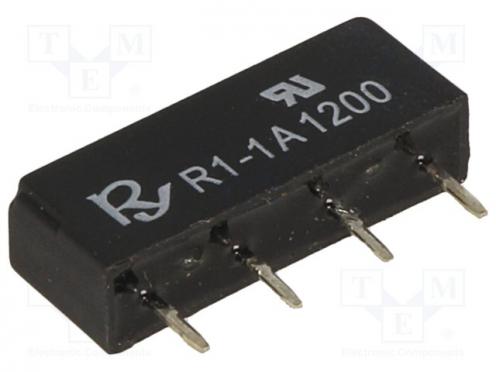

Relay reed SPST-NO Ucoil 12VDC 1A max250VDC 10VA Rcoil 1kΩ

Barcode:
Number: TMER1-1A1200
Package:
Min. quantity: 1
Items in stock i 292 pieces
Manufacturer: RAYEX ELECTRONICS

Quantity

Quantity 5+ ks 8+ ks 17+ ks More
Unit Price £2.27 £1.67 £1.58 ask for a price

Shipping Cost


£2.5 price without VAT

Select the transport (Price incl. transport)

Relay reed SPST-NO Ucoil 12VDC 1A max250VDC 10VA Rcoil 1kΩ - Popis produktu

Type of relayreed
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max.1A
Switched voltagemax 250V DC
Switching capacity10VA
Coil resistance1kΩ
Coil power consumption144mW
MountingPCB
CaseSIL
Contact resistance150mΩ
Coil voltage min.9V DC
Coil voltage max.20V DC
Operating temperature-40...85°C
Operate time1ms
Release time0.5ms
Contact materialAgCdO
Body dimensions19 x 5 x 7mm
Relay seriesR1
Terminal pitch5.08mm
ManufacturerRAYEX ELECTRONICS
