Electromagnetic relay for large applications

GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic relay for large applications

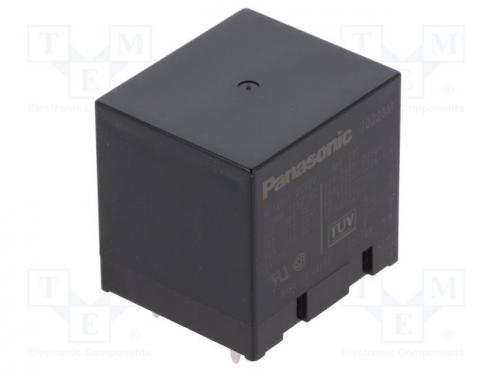

Relay electromagnetic SPST-NO Ucoil 12VDC Icontacts max 30A

Items in stock i 217 pieces
Barcode:
Number: TMEHE1AN-P-DC12V
Package:
Min. quantity: 1
Manufacturer: PANASONIC


£16.7 price without VAT

Select the transport (Price incl. transport)

Quantity pricing

Quantity 2+ ks More
Unit Price £15.81 ask for a price

Quantity

Min. quantity: 1


Shipping Cost

Popis produktu

Relay electromagnetic SPST-NO Ucoil 12VDC Icontacts max 30A - Popis produktu

ManufacturerPANASONIC
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max.30A
Coil voltage min.8.4V DC
Relay seriesHE
Relay variantpower
Operating temperature-50...55°C
MountingPCB
Coil resistance75Ω
Body dimensions38x33x36.3mm
Switched voltagemax. 30V DC
Switched voltagemax. 277V AC
Coil power consumption1.92W
AC contacts rating @R30A / 277V AC
DC contacts rating @R30A / 30V DC
Operate time30ms
Release time10ms
Contact materialAgSnO2
Mechanical durability10000000 cycles
Coil current160mA
Weight80g
Switching capacity8.31kVA
