GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic relay for large applications
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMET9AS5D12-5 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE Connectivity |

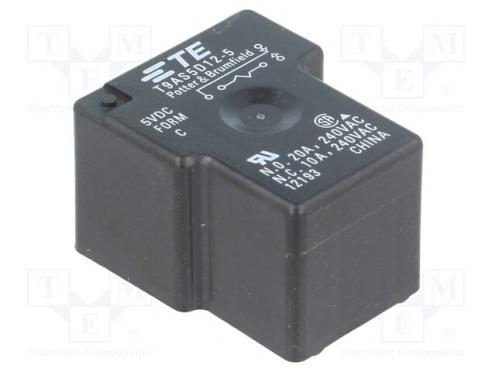

Relay electromagnetic SPDT Ucoil 5VDC 20A Ucoil min 3.75VDC - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 5V DC |
| Contact current max. | 20A |
| Coil voltage min. | 3.75V DC |
| Relay series | T9A |
| Relay variant | power |
| Operating temperature | -55...85°C |
| Mounting | PCB |
| Coil resistance | 25Ω |
| Body dimensions | 32.5x27.4x27.9mm |
| Switched voltage | max. 28V DC |
| Switched voltage | max. 277V AC |
| Coil power consumption | 1W |
| AC contacts rating @R | 20A / 240V AC |
| Contact resistance | 75mΩ |
| DC contacts rating @R | 10A / 28V DC |
| Leads | for PCB |
| Contact material | AgCdO |
| Mechanical durability | 10000000 cycles |
