GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic relay for large applications
| Items in stock i | 495 pieces |
|---|---|
| Barcode: | |
| Number: | TMEGU-SH-148D |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | GOODSKY |

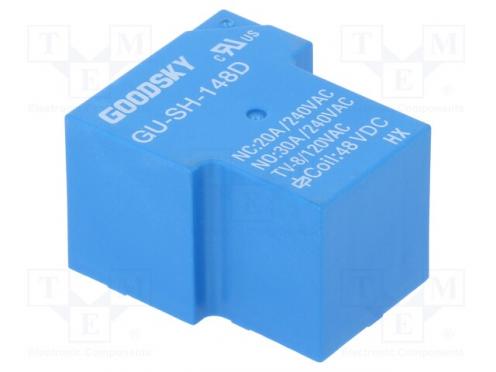

Relay electromagnetic SPDT Ucoil 48VDC 30A Series GU PCB - Popis produktu
| Manufacturer | GOODSKY |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 48V DC |
| Contact current max. | 30A |
| Relay series | GU |
| Relay variant | power |
| Operating temperature | -25...55°C |
| Mounting | PCB |
| Coil resistance | 2.48kΩ |
| Body dimensions | 32.1x27.5x20mm |
| Switched voltage | max. 240V AC |
| Coil power consumption | 930mW |
| AC contacts rating @R | 30A / 240V AC |
| Contact resistance | 100mΩ |
| DC contacts rating @R | 20A / 30V DC |
| Operate time | 15ms |
| Release time | 10ms |
