GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Electromagnetic relay for large applications
| Items in stock i | 413 pieces |
|---|---|
| Barcode: | |
| Number: | TMEHF105F1/012DT-1ZST |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HONGFA RELAY |

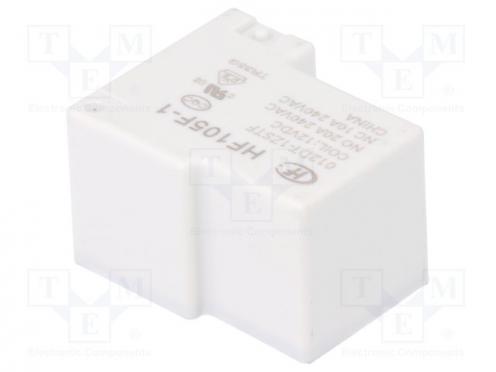

Relay electromagnetic SPDT Ucoil 12VDC 20A Ucoil min 9VDC - Popis produktu
| Manufacturer | HONGFA RELAY |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max. | 20A |
| Coil voltage min. | 9V DC |
| Relay variant | power |
| Operating temperature | -55...85°C |
| Mounting | PCB |
| Coil resistance | 155Ω |
| Body dimensions | 32.3x27.1x20mm |
| Switched voltage | max. 28V DC |
| Switched voltage | max. 277V AC |
| Coil power consumption | 900mW |
| AC contacts rating @R | 20A / 240V AC |
| Contact resistance | 50mΩ |
| DC contacts rating @R | 20A / 28V DC |
| Operate time | 15ms |
| Release time | 10ms |
| Contact material | AgSnO2 |
| Mechanical durability | 10000000 cycles |
| Weight | 36g |
| Switching capacity | 560W |
| Switching capacity | 4.8kVA |
