GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Miniature Electromagnetic Relay
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEHFD3/5 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HONGFA RELAY |

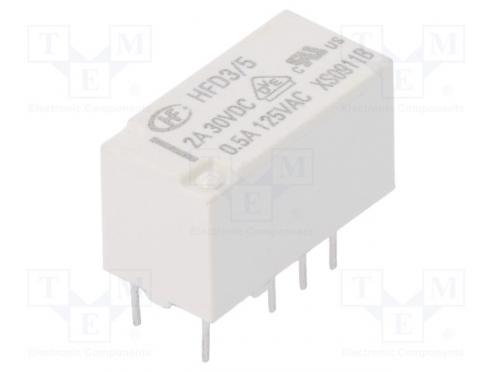

Relay electromagnetic DPDT Ucoil 5VDC 2A 0.5A/125VAC PCB - Popis produktu
| Manufacturer | HONGFA RELAY |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 5V DC |
| Contact current max. | 2A |
| AC contacts rating @R | 0.5A / 125V AC |
| DC contacts rating @R | 2A / 30V DC |
| Switched voltage | max. 220V DC |
| Switched voltage | max. 250V AC |
| Relay variant | signal |
| Relay variant | subminiature |
| Mounting | PCB |
| Coil resistance | 178Ω |
| Coil voltage min. | 3.75V DC |
| Coil voltage max. | 7.5V DC |
| Operate time | 4ms |
| Body dimensions | 15x7.5x9mm |
| Release time | 4ms |
| Coil power consumption | 140mW |
| Operating temperature | -40...85°C |
| Contact resistance | 100mΩ |
| Contact material | AgNi + Au |
| Terminal pitch | 2.54mm |
