| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEV23079D2008B301 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE Connectivity |

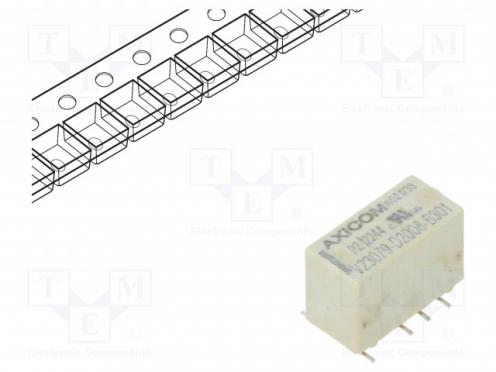

Relay electromagnetic DPDT Ucoil 3VDC 2A 0.5A/125VAC SMT 45Ω - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 3V DC |
| Contact current max. | 2A |
| AC contacts rating @R | 0.5A / 125V AC |
| DC contacts rating @R | 2A / 30V DC |
| Switched voltage | max. 220V DC |
| Switched voltage | max. 250V AC |
| Relay variant | miniature |
| Relay variant | monostable |
| Mounting | SMT |
| Coil resistance | 45Ω |
| Coil voltage min. | 2.25V DC |
| Coil voltage max. | 6.1V DC |
| Body dimensions | 14.5x7.2x9.8mm |
| Coil power consumption | 200mW |
| Operating temperature | -40...85°C |
| Relay series | P2 |
| Terminal pitch | 2.54mm |
| Design | single coil |
