GSMCentrum.CZ » Electronic components » Relays, Contactors, and Magnetic Contacts » Miniature Electromagnetic Relay

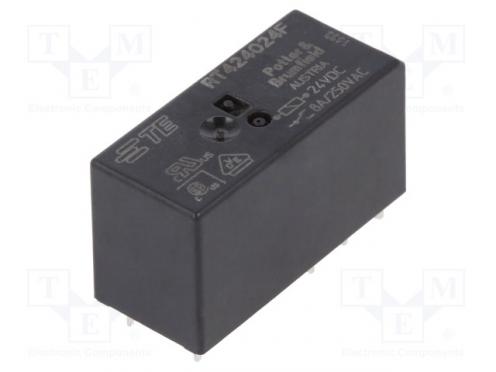

Relay electromagnetic DPDT Ucoil 24VDC 8A 8A/250VAC 8A/30VDC
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMERT424024F |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | TE Connectivity |
Popis produktu
Relay electromagnetic DPDT Ucoil 24VDC 8A 8A/250VAC 8A/30VDC - Popis produktu
| Manufacturer | TE Connectivity |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max. | 8A |
| AC contacts rating @R | 8A / 250V AC |
| DC contacts rating @R | 8A / 30V DC |
| Switched voltage | max. 300V DC |
| Switched voltage | max. 400V AC |
| Relay variant | miniature |
| Relay variant | monostable |
| Mounting | PCB |
| Coil resistance | 1.44kΩ |
| Coil voltage min. | 16.8V DC |
| Operate time | 8ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 6ms |
| Coil power consumption | 400mW |
| IP rating | IP40 |
| Operating temperature | -40...85°C |
| Weight | 14g |
| Relay series | RT2 |
| Contact material | AgNi 90/10 |
| Terminal pitch | 5mm |
| Height | 15.7mm |
| Number of pins | 8 |
