| Items in stock i | 2675 pieces |
|---|---|
| Barcode: | |
| Number: | TMEHFD2/024-M |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | HONGFA RELAY |

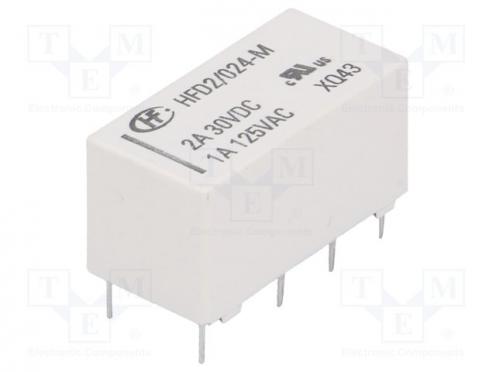

Relay electromagnetic DPDT Ucoil 24VDC 3A 1A/125VAC 3A/30VDC - Popis produktu
| Manufacturer | HONGFA RELAY |
|---|---|
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max. | 3A |
| AC contacts rating @R | 1A / 125V AC |
| DC contacts rating @R | 3A / 30V DC |
| Switched voltage | max. 220V DC |
| Switched voltage | max. 250V AC |
| Relay variant | subminiature |
| Mounting | PCB |
| Coil resistance | 2.88kΩ |
| Coil voltage min. | 18V DC |
| Coil voltage max. | 48V DC |
| Operate time | 4.5ms |
| Body dimensions | 20.2x10.2x10.6mm |
| Release time | 3.5ms |
| Coil power consumption | 200mW |
| Operating temperature | -40...85°C |
| Contact resistance | 100mΩ |
| Contact material | AgPd/Au 0,2μm |
| Terminal pitch | 5.08mm |
