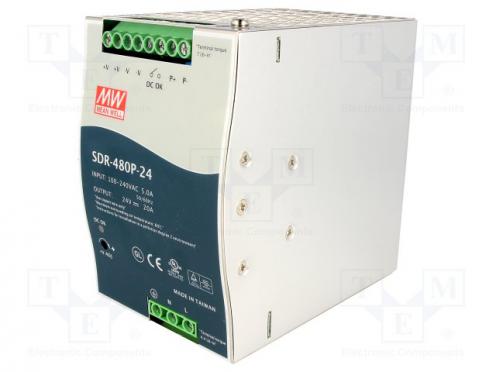

MEAN WELL SDR-480P-24 Power supply switched-mode 480W 24VDC 20A 90÷264VAC DIN 94%
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMESDR-480P-24 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | MEAN WELL |
Popis produktu
MEAN WELL SDR-480P-24 Power supply switched-mode 480W 24VDC 20A 90÷264VAC DIN 94% - Popis produktu
| Manufacturer | MEAN WELL |
|---|---|
| Type of power supply | switched-mode |
| Power | 480W |
| Output voltage | 24V DC |
| Output voltage range | 24...28V DC |
| Output current | 20A |
| Supply voltage | 90...264V AC |
| Supply voltage | 127...370V DC |
| Electrical connection | terminal block |
| Mounting | DIN |
| Body dimensions | 85.5x125.2x128.5mm |
| Weight | 1.6kg |
| Number of outputs | 1 |
| Operating temperature | -25...70°C |
| Protection | anti-overload OPP |
| Protection | anti-overvoltage OVP |
| Protection | overheating OTP |
| Protection | short circuit protection SCP |
| Efficiency | 94% |
| Additional functions | active PFC |
| Additional functions | output voltage correctness indication (NO contact) |
| Additional functions | parallel function |
| Power supply/converter features | rated parameters obtained at full load |
| Manufacturer series | SDR-480P |
| Kind of case | 984A |
