GSMCentrum.CZ » Mechanical elements » Protective, fastening components » Retaining rings

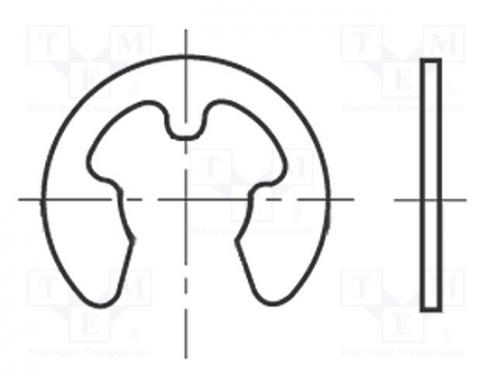

Circlip spring steel Shaft dia 7mm BN 809 Ring external
| Items in stock i | 1300 pieces |
|---|---|
| Barcode: | |
| Number: | TMEB7/BN809 |
| Package: | |
| Min. quantity: | 100 |
| Manufacturer: | BOSSARD |
Popis produktu
Circlip spring steel Shaft dia 7mm BN 809 Ring external - Popis produktu
| Manufacturer | BOSSARD |
|---|---|
| Type of protective element | circlip |
| Material | spring steel |
| Shaft diameter | 7mm |
| BN standard | 809 |
| Plating material | black finish |
| Kind of circlip | external |
| Outside diameter | 14.3mm |
| Thickness | 0.9mm |
| Internal diameter | 5.84mm |
| m dimension | 0.94mm |
| DIN standard | 6799 |
| Dimension n min | 1.5mm |
| Dimension d3 min | 8mm |
| Dimension d3 max | 11mm |
