GSMCentrum.CZ » Cables and Connectors » Power and extension » Terminal blocks

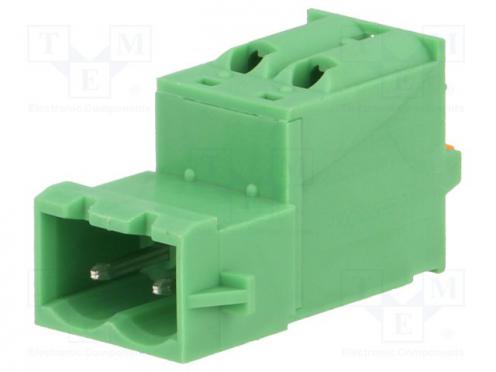

Pluggable terminal block Contacts ph 5.08mm ways 2 straight
| Items in stock i | 146 pieces |
|---|---|
| Barcode: | |
| Number: | TMEFKIC2.5/2-5.08 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | PHOENIX CONTACT |
Popis produktu
Pluggable terminal block Contacts ph 5.08mm ways 2 straight - Popis produktu
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways | 2 |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | male |
| Mechanical mounting | for cable |
| Electrical mounting | spring clamp |
| Colour | green |
| Rated voltage | 250V |
| Type of pin configuration | 1x2 |
| Current rating | 12A |
| Body material | polyamide |
| Locking system | latch |
| Flammability rating | UL94V-0 |
| Conform to the norm | CSA |
| Conform to the norm | UL |
| Conform to the norm | VDE |
| Contact plating | tinned |
| Operating temperature | -40...105°C |
| Number of terminals | 2 |
| Connector variant | with push button |
| Stripped wire length | 10mm |
| Wire cross section | 0.2...2.5mm2 |
| Wire size | 24AWG...12AWG |
