GSMCentrum.CZ » Cables and Connectors » Power and extension » Terminal blocks

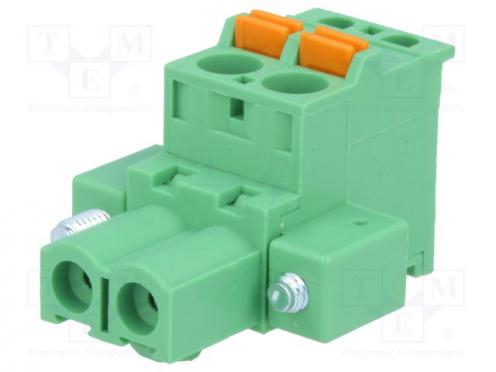

Pluggable terminal block 5.08mm ways 2 angled 90° plug green
| Items in stock i | 10 pieces |
|---|---|
| Barcode: | |
| Number: | TME2EDGKDBM-5.08-02P |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | DEGSON ELECTRONICS |
Popis produktu
Pluggable terminal block 5.08mm ways 2 angled 90° plug green - Popis produktu
| Manufacturer | DEGSON ELECTRONICS |
|---|---|
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways | 2 |
| Spatial orientation | angled 90° |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | spring clamp |
| Colour | green |
| Rated voltage | 320V |
| Type of pin configuration | 1x2 |
| Current rating | 20A |
| Body material | polyamide 66 |
| Locking system | latch |
| Locking system | screws |
| Flammability rating | UL94V-0 |
| Conform to the norm | CE |
| Conform to the norm | UL |
| Conform to the norm | VDE |
| Operating temperature | -40...105°C |
| Contact material | phosphor bronze |
| Number of terminals | 2 |
| Connector variant | with push button |
| Wire cross section | 2.5mm2 |
| Wire size | 26AWG...12AWG |
