GSMCentrum.CZ » Cables and Connectors » Power and extension » Terminal blocks

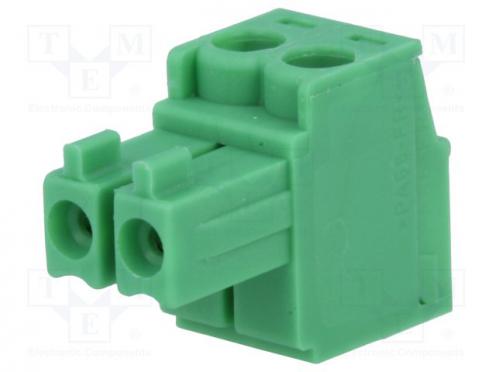

Pluggable terminal block 3.5mm ways 2 straight plug female
| Items in stock i | 914 pieces |
|---|---|
| Barcode: | |
| Number: | TMEMC1.5/2-ST-3.5 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | PHOENIX CONTACT |
Popis produktu
Pluggable terminal block 3.5mm ways 2 straight plug female - Popis produktu
| Manufacturer | PHOENIX CONTACT |
|---|---|
| Type of connector | pluggable terminal block |
| Contacts pitch | 3.5mm |
| Number of ways | 2 |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp |
| Electrical mounting | screw terminal |
| Colour | green |
| Rated voltage | 160V |
| Type of pin configuration | 1x2 |
| Current rating | 8A |
| Body material | polyamide |
| Locking system | friction lock |
| Flammability rating | UL94V-0 |
| Conform to the norm | CSA |
| Conform to the norm | UL |
| Conform to the norm | VDE |
| Contact plating | tinned |
| Number of terminals | 2 |
| Wire cross section | 0.14...1.5mm2 |
| Wire size | 28AWG...16AWG |
