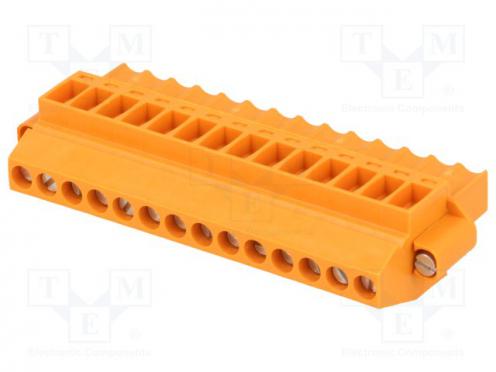

Pluggable terminal block 3.5mm ways 14 angled 90° plug 320V
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEBL3.50/14/270FSNOR |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | WEIDMULLER |
Popis produktu
Pluggable terminal block 3.5mm ways 14 angled 90° plug 320V - Popis produktu
| Manufacturer | WEIDMÜLLER |
|---|---|
| Type of connector | pluggable terminal block |
| Contacts pitch | 3.5mm |
| Number of ways | 14 |
| Spatial orientation | angled 90° |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp |
| Electrical mounting | screw terminal |
| Colour | orange |
| Rated voltage | 320V |
| Type of pin configuration | 1x14 |
| Current rating | 12A |
| Body material | PBT |
| Locking system | screws |
| Flammability rating | UL94V-0 |
| Conform to the norm | CSA |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -50...100°C |
| Number of terminals | 14 |
| Wire cross section | 0.2...1.5mm2 |
| Wire size | 28AWG...14AWG |
