GSMCentrum.CZ » Measuring instruments » Oscilloscopes

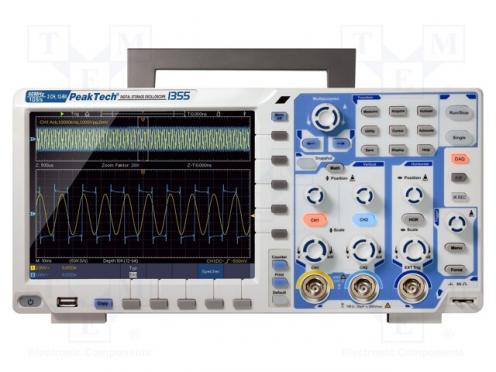

Oscilloscope digital Ch 2 60MHz 1Gsps 40Mpts 2n÷1ks/div 24W
| Barcode: | |
| Number: | TMEPKT-P1355 |
| Package: | |
| Min. quantity: | 1 |
| Availability | Only per order |
|---|---|
| Manufacturer: | PEAKTECH |
Oscilloscope digital Ch 2 60MHz 1Gsps 40Mpts 2n÷1ks/div 24W - Popis produktu
| Manufacturer | PEAKTECH |
|---|---|
| Type of oscilloscope | digital |
| Number of channels | 2 |
| Band | 60MHz |
| Sampling | 1Gsps |
| Memory record length | 40Mpts |
| Kind of display used | TFT 8" (800x600) |
| Kind of display used | touch screen |
| Trigger modes | automatic |
| Trigger modes | normal |
| Trigger modes | single |
| Trigger | falling-edge |
| Trigger | pulse |
| Trigger | rising-edge |
| Trigger | slope |
| Trigger | video signal |
| Trigger source | CH1 |
| Trigger source | CH2 |
| Trigger source | line |
| Time base | 2n...1ks/div |
| Max. input voltage | 400V |
| Vertical resolution | 12bit |
| Input coupling | AC, DC, GND |
| Trigger coupling | AC |
| Trigger coupling | DC |
| Trigger coupling | highpass |
| Trigger coupling | lowpass |
| Horizontal accuracy | ±3% |
| Interface | LAN |
| Interface | USB |
| Interface | VGA |
| Rise time | ≤5.8ns |
| Input impedance | 1MΩ/15pF |
| Input sensitivity | 1mV/div...10V/div |
| Measuring instrument features | mathematical functions: addition, subtraction, division, multiplication and FFT |
| Standard equipment | 2 oscilloscope probes |
| Standard equipment | case |
| Standard equipment | mains cable |
| Standard equipment | USB cable |
| Standard equipment | user's manual |
| Plug variant | EU |
| Power consumption | 24W |
| Operating temperature | 0...40°C |
| Weight | 2.6kg |
| Body dimensions | 340x180x90mm |
| Related items | PKT-AKKU6 |
| Software | included |
| Supply voltage | 100...240V AC |
