| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEB88069X1640T902 |
| Package: | |
| Min. quantity: | 900 |
| Manufacturer: | EPCOS |

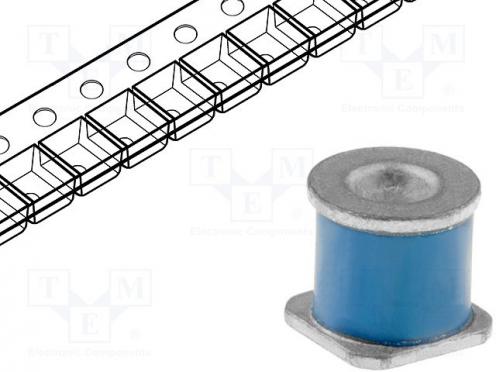

Arrester surge arrester SMD Ø5x5mm Ubr type 90V 1pF 1GΩ - Popis produktu
| Manufacturer | EPCOS |
|---|---|
| Type of surge arrester | surge arrester |
| Mounting | SMD |
| Body dimensions | Ø5x5mm |
| Typical spark-over voltage | 90V |
| Capacitance | 1pF |
| Min. insulation resistance | 1GΩ |
| Max. overload voltage | 550V |
| Impulse discharge current (8/20µs) | 5kA |
| Impulse discharge current AC 50Hz (1 s 10 times) | 5A |
