GSMCentrum.CZ » Robotics » Micro motors and accessories

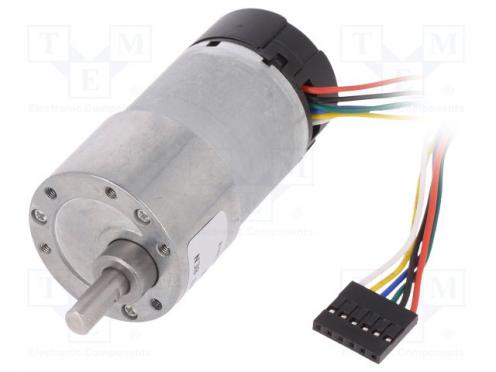

Motor DC with encoder,with gearbox 12VDC 7A Shaft D spring
| Items in stock i | 9 pieces |
|---|---|
| Barcode: | |
| Number: | TMEDF-FIT0186 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | DFROBOT |
Popis produktu
Motor DC with encoder,with gearbox 12VDC 7A Shaft D spring - Popis produktu
| Manufacturer | DFROBOT |
|---|---|
| Type of motor | DC |
| Kind of motor | with encoder |
| Kind of motor | with gearbox |
| Supply voltage | 12V DC |
| Max. operating current | 7A |
| Shaft surface | D spring |
| Nominal rot. speed measured after gear | 251rpm |
| Shaft diameter | 6mm |
| Operating current | 350mA |
| Double sided shaft | no |
| Resolution | 700imp/revol. |
| Transformation ratio | 44:1 |
| Interface | TTL |
| Caution! | Do not screw too far into the mounting holes as the screws can hit the gears (max 3 mm). |
| Information | Product is not a working device, but only component |
| Torque | max. 1.8Nm |
