GSMCentrum.CZ » Automation technology » Regulation and control » Regulators

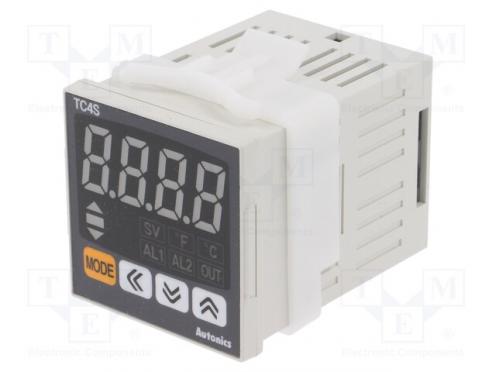

Module regulator temperature SPST-NO OUT 2 SSR OUT 3 SPST-NO
| Items in stock i | 15 pieces |
|---|---|
| Barcode: | |
| Number: | TMETC4SP-14R |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | AUTONICS |
Popis produktu
Module regulator temperature SPST-NO OUT 2 SSR OUT 3 SPST-NO - Popis produktu
| Manufacturer | AUTONICS |
|---|---|
| Type of module | regulator |
| Kind of temperature sensor | Cu50 |
| Kind of temperature sensor | Pt100 |
| Kind of temperature sensor | thermocouple J |
| Kind of temperature sensor | thermocouple K |
| Kind of temperature sensor | thermocouple L |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| Kind of output 2 | SSR |
| Kind of output 3 | SPST-NO |
| Regulation for output 1 | ON-OFF |
| Regulation for output 1 | P |
| Regulation for output 1 | PD |
| Regulation for output 1 | PI |
| Regulation for output 1 | PID |
| Mounting | on panel |
| Mounting | socket |
| Output 1 electrical parameters | 250V AC / 3A |
| Output 2 electrical parameters | 12V DC / 20mA |
| Output 3 electrical parameters | 250V AC / 1A |
| Controlled parameter range | -1999...9999 |
| Operating temperature | -10...50°C |
| Supply voltage | 100...240V AC |
| The programming method | foil keypad |
| Body dimensions | 48x48x70.5mm |
| Mounting hole diameter | 45x45mm |
| Input 1 properties | RTD |
| Input 1 properties | thermocouple |
| Kind of display used | LED |
| Display height 1 | 15mm |
| Additional functions | LED status indicator |
| Related items | A-11/DIN |
