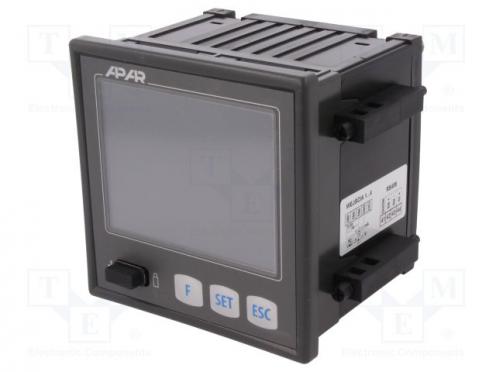

Four channel regulator 24VAC 24VDC 0÷50°C Cutout 92x89mm
| Items in stock i | 2 pieces |
|---|---|
| Barcode: | |
| Number: | TMEAR654/S2/PPPP/IP30 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | APAR |
Popis produktu
Four channel regulator 24VAC 24VDC 0÷50°C Cutout 92x89mm - Popis produktu
| Type of module | four channel regulator |
|---|---|
| Kind of temperature sensor | Ni100 |
| Kind of temperature sensor | Pt100 |
| Kind of temperature sensor | Pt1000 |
| Kind of temperature sensor | Pt500 |
| Kind of temperature sensor | thermocouple B |
| Kind of temperature sensor | thermocouple E |
| Kind of temperature sensor | thermocouple J |
| Kind of temperature sensor | thermocouple K |
| Kind of temperature sensor | thermocouple N |
| Kind of temperature sensor | thermocouple R |
| Kind of temperature sensor | thermocouple S |
| Kind of temperature sensor | thermocouple T |
| Supply voltage | 24V DC |
| Supply voltage | 24V AC |
| Input 1 properties | 4 channel |
| Input 1 properties | RTD |
| Input 1 properties | thermocouple |
| Mounting | desktop |
| Mounting | on panel |
| Mounting | panel |
| Operating temperature | 0...50°C |
| IP rating | IP30 (from the front) |
| The programming method | MODBUS |
| The programming method | RS485 |
| The programming method | USB |
| The programming method | computer disk |
| The programming method | foil keypad |
| The programming method | memory stick |
| Additional functions | locked by password |
| Additional functions | error messages on the LED display |
| Additional functions | display brightness adjustment |
| Additional functions | transducers power supply 24V DC |
| Kind of display used | LCD TFT 3,5" (320x240) |
| Kind of display used | touch screen |
| Body dimensions | 96 x 96 x 79mm |
| Mounting hole diameter | 92 x 89mm |
| Kind of output 1 | SPST-NO |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | SPST-NO |
| Kind of output 4 | SPST-NO |
| Controlled parameter range | -9999...99999 |
| Controlled parameter range | depends on temperature sensor |
| Controlled parameter | pressure |
| Controlled parameter | fluid flow |
| Controlled parameter | speed |
| Controlled parameter | temperature |
| Controlled parameter | humidity |
| Kind of input 1 | 0...10V |
| Kind of input 1 | 0...20mA |
| Kind of input 1 | 0...60mV |
| Kind of input 1 | 0...850Ω |
| Kind of input 1 | 4...20mA |
| Kind of input 1 | universal |
| Output 1 electrical parameters | 250VAC/5A |
| Output 2 electrical parameters | 250VAC/5A |
| Output 3 electrical parameters | 250VAC/5A |
| Output 4 electrical parameters | 250VAC/5A |
| Regulation for output 1 | AUTOTUNING |
| Regulation for output 1 | ON-OFF with hysteresis |
| Regulation for output 1 | PID |
| Regulation for output 1 | PROGRAM |
| Manufacturer | APAR |
