GSMCentrum.CZ » Electronic components » Fans » DC Fans
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEMF40100V2-A99-A |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SUNON |

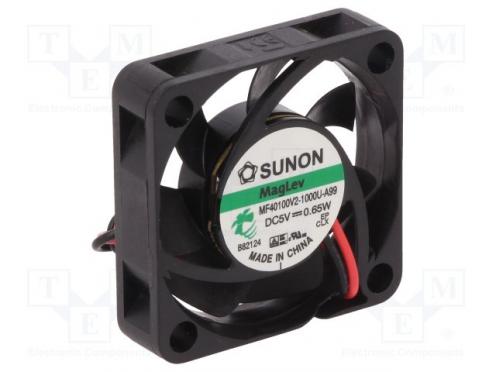

Fan DC axial 5VDC 40x40x10mm 13.52m3/h 20.6dBA Vapo 5800rpm - Popis produktu
| Type of fan | DC |
|---|---|
| Kind of fan | axial |
| Supply voltage | 5V DC |
| Operating voltage | 3.5...6V |
| Fan dimensions | 40x40x10mm |
| Power consumption | 0.47W |
| Current rating | 0.94A |
| Fans efficiency | 13.52m3/h |
| Noise level | 20.6dBA |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 5800rpm |
| Weight | 15.6g |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Enclosure material | thermoplastic |
| Insulation class | A |
| Leads | 2 leads |
| Operating temperature | -10...70°C |
| Static pressure | 11.83mm H2O |
| Cable length | 300mm |
| Fan motor | brushless DC motor |
| Flammability rating | UL94V-0 |
| Wire size | 26AWG |
| Additional functions | Autorestart |
| Manufacturer | SUNON |
