GSMCentrum.CZ » Electronic components » Fans » DC Fans
| Items in stock i | 1011 pieces |
|---|---|
| Barcode: | |
| Number: | TMEEEC0252B3-G99 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SUNON |

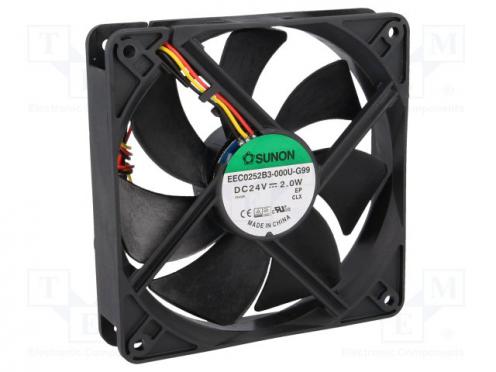

Fan DC axial 24VDC 120x120x25mm 127.5m3/h 34dBA ball bearing - Popis produktu
| Type of fan | DC |
|---|---|
| Kind of fan | axial |
| Supply voltage | 24V DC |
| Operating voltage | 10...27.6V |
| Fan dimensions | 120x120x25mm |
| Power consumption | 2W |
| Current rating | 0.084A |
| Fans efficiency | 127.5m3/h |
| Noise level | 34dBA |
| Kind of Bearing | ball bearing |
| Signal output | F type |
| Rotational rate/speed | 2200 (±10%)rpm |
| Weight | 157g |
| Current and power consumption tolerance | ±15% |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Enclosure material | thermoplastic |
| Insulation class | A |
| Leads | 3 leads |
| Operating temperature | -10...70°C |
| Static pressure | 4.07mm H2O |
| Cable length | 330mm |
| Fan motor | brushless DC motor |
| Flammability rating | UL94V-0 |
| Wire size | 24AWG |
| Additional functions | Autorestart |
| Manufacturer | SUNON |
