GSMCentrum.CZ » Electronic components » Fans » DC Fans
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEPF80251V2-A99-A |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SUNON |

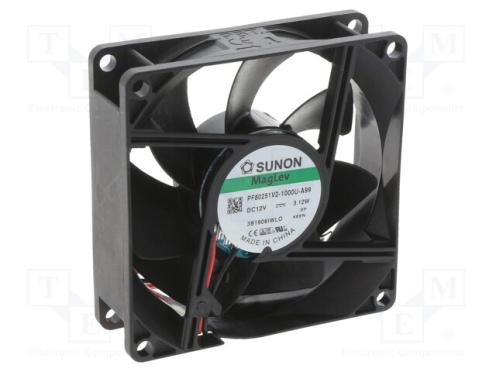

Fan DC axial 12VDC 80x80x25mm 96.85m3/h 43.1dBA Vapo 4500rpm - Popis produktu
| Manufacturer | SUNON |
|---|---|
| Type of fan | DC |
| Kind of fan | axial |
| Supply voltage | 12V DC |
| Operating voltage | 6...13.8V |
| Fan dimensions | 80x80x25mm |
| Power consumption | 3.12W |
| Current rating | 0.24A |
| Fan efficiency | 96.85m3/h |
| Noise level | 43.1dBA |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 4500rpm |
| Current and power consumption tolerance | ±15% |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Enclosure material | thermoplastic |
| Leads | lead x2 |
| Operating temperature | -10...70°C |
| Cable length | 0.315m |
| Flammability rating | UL94V-0 |
| Additional functions | autorestart |
| Fan motor | brushless DC |
| Static pressure | 8.88mm H2O |
| Wire size | 24AWG |
