GSMCentrum.CZ » Electronic components » Fans » DC Fans
| Items in stock i | 4897 pieces |
|---|---|
| Barcode: | |
| Number: | TMEMEC0251V2-A99 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SUNON |

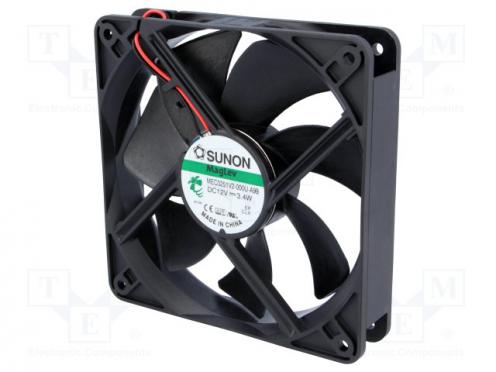

Fan DC axial 12VDC 120x120x25mm 158.1m3/h 40.5dBA Vapo 24AWG - Popis produktu
| Type of fan | DC |
|---|---|
| Kind of fan | axial |
| Supply voltage | 12V DC |
| Operating voltage | 6...13.8V |
| Fan dimensions | 120x120x25mm |
| Power consumption | 3.4W |
| Current rating | 0.279A |
| Fans efficiency | 158.1m3/h |
| Noise level | 40.5dBA |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 2700 (±10%)rpm |
| Weight | 162g |
| Current and power consumption tolerance | ±15% |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Enclosure material | thermoplastic |
| Insulation class | A |
| Leads | 2 leads |
| Operating temperature | -10...70°C |
| Static pressure | 5.58mm H2O |
| Cable length | 330mm |
| Fan motor | brushless DC motor |
| Flammability rating | UL94V-0 |
| Wire size | 24AWG |
| Additional functions | Autorestart |
| Manufacturer | SUNON |
