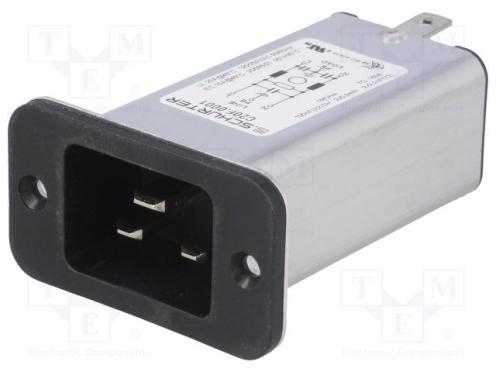

Connector AC supply socket male 20A 250VAC IEC 60320 0.3mH
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEC20F.0001 |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | SCHURTER |
Popis produktu
Connector AC supply socket male 20A 250VAC IEC 60320 0.3mH - Popis produktu
| Manufacturer | SCHURTER |
|---|---|
| Type of connector | AC supply |
| Connector | socket |
| Kind of connector | male |
| Current rating | 20A |
| Standard | IEC 60320 |
| Connector variant | C20 (I) |
| Connector variant | with filter |
| Mechanical mounting | for panel mounting |
| Mechanical mounting | screw |
| Operating temperature | -25...85°C |
| Leads | for soldering |
| Panel thickness | max. 8mm |
| Inductance | 0.3mH |
| Capacitance Cx | 0.1µF |
| Capacitance Cy | 2.2nF |
| Mounting holes pitch | 42mm |
| Mounting hole diameter | 42x34.8mm |
| Leakage current | 0.5mA |
| Thread | M3 |
| Rated voltage | 250V AC |
