GSMCentrum.CZ » Cables and Connectors » Power and extension » AC Connectors » IEC 60320 Connectors

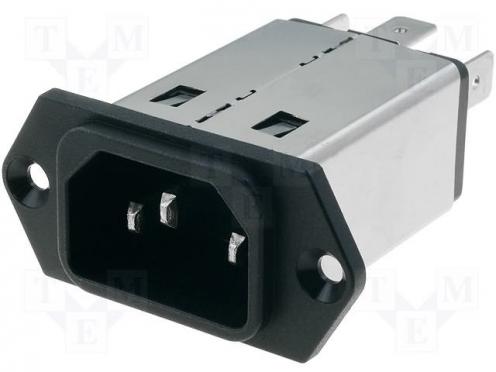

Connector AC supply socket male 3A 250VAC IEC 60320 -25÷85°C
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TME5110.0333.1 |
| Package: | |
| Min. quantity: | 10 |
| Manufacturer: | SCHURTER |
Popis produktu
Connector AC supply socket male 3A 250VAC IEC 60320 -25÷85°C - Popis produktu
| Manufacturer | SCHURTER |
|---|---|
| Type of connector | AC supply |
| Connector | socket |
| Kind of connector | male |
| Current rating | 3A |
| Standard | IEC 60320 |
| Connector variant | C14 (E) |
| Connector variant | with filter |
| Mechanical mounting | for panel mounting |
| Mechanical mounting | screw |
| Electrical mounting | 6.3x0,8mm connectors |
| Operating temperature | -25...85°C |
| Leads | 6,3x0,8mm connectors |
| Panel thickness | max. 5mm |
| Inductance | 2.5mH |
| Capacitance Cx | 100nF |
| Capacitance Cy | 2.2nF |
| Mounting holes pitch | 40mm |
| Leakage current | 0.5mA |
| Flammability rating | UL94V-0 |
| Supply voltage frequency | 50/60Hz |
| Rated voltage | 250V AC |
