GSMCentrum.CZ » Automation technology » Regulation and control » Time relay

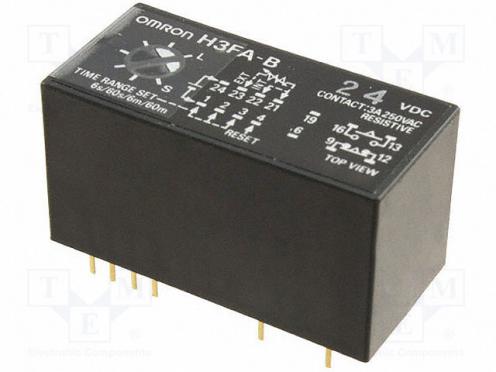

Timer 0,6s÷60min SPST-NO + SPST-NC 250VAC/3A 24VDC PCB
| Availability | Only per order |
|---|---|
| Barcode: | |
| Number: | TMEH3FA-B-24VDC |
| Package: | |
| Min. quantity: | 1 |
| Manufacturer: | OMRON |
Popis produktu
Timer 0,6s÷60min SPST-NO + SPST-NC 250VAC/3A 24VDC PCB - Popis produktu
| Manufacturer | OMRON |
|---|---|
| Type of module | timer |
| Counting range | 0,6s...60min |
| Kind of output | SPST-NO + SPST-NC |
| Output 1 electrical parameters | 250V AC / 3A |
| Supply voltage | 24V DC |
| number of operation modes | 1 |
| Counter operation modes | delayed switching on |
| Counter operation modes | with the control contact S |
| Mounting | PCB |
| Operating temperature | -10...55°C |
| Body dimensions | 17.5x36.9x19.5mm |
| Number of pins | 12 |
| The additional control inputs | RESET |
